CE Certified 11 Ton Weight Aluminium Foil Container Making Machine For Food Container
Components:
1. Automatic decoiler&feeder head.
2. Mitsubishi brand control panel&PLC.
3. 11tons press.
4. Mould.
5. Auto-stacker with1-5 lanes(optional).
6. scrap aspirator
7. Safety Door
Main Features:
1.The moulds that we design and produce are suitable for almost every kind of machine or press.
2. We produce mould with the best quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure moulds are in top quality and long life.
3. To meet customers’ different requirement, we design and manufacture the mould in several rims, such as G rim, L rim, H rim, and IVC etc.
4. We can design and produce the mould in multi-cavities, 1, 2, 3, 4 cavities or more.no matter it is one compartment container or multi-compartments container.
5. We can print your preferred logos upon request.
6.Scientific design make the Cutting Scrap Rate under good control.

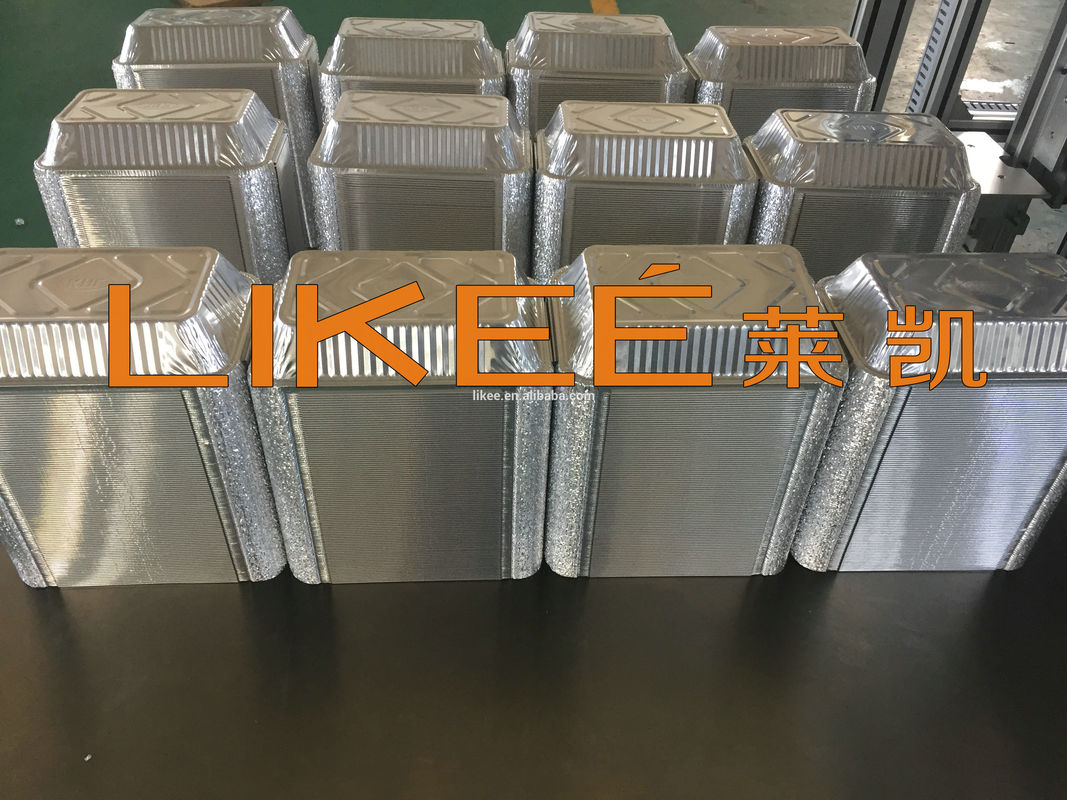

7. Container shapes: square, rectangular, circular, oval, special shapes etc.
ITEM | LK-63T | LK-80T |
Strokes | 30-75times/min | 30-75times/min |
Voltage |
3-380V 50HZ 4wires |
3-380V 50HZ 4wires |
Total Weight |
9.2KGS (approximate) |
10.5KGS (approximate) |
Area | 6.5mx6m | 7.5mx7.0m |
Core Coil Head Dia | 3min/6inch | 3min/6inch |
Max. Foil Roll Outer Dia | 700mm | 800mm |
Max. Foil Width | 780mm | 1050mm |
FAQ
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.
We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
