ISO Household Aluminium Foil Rewinding Machine High Speed 350m/Min

1 SET
MOQ
USD 10,000
Price
ISO Household Aluminium Foil Rewinding Machine High Speed 350m/Min
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 3KW
Electric Request: 380V, 50HZ, 3Phase
Roll Thickness: 0.009mm~0.03mm
Rewinding Roll Width: 100~450mm
Rewinding Roll ID: 38 Or 30mm
Rewinding Roll OD: 45~130mm
Working Speed: 0~350m/min
Cardboard Core Thickness: Not Less Than 3mm
Foil Cutting: Automatic
High Light:

ISO Aluminium Foil Roll Making Machine

,

350m/Min Household Aluminium Foil Rewinding Machine

,

350m/Min Household Aluminium Foil Rewinding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIKEE
Certification: CE, ISO
Model Number: LK-B500
Payment & Shipping Terms
Packaging Details: sea shipping standard wooden case
Delivery Time: 45 days
Supply Ability: 1 set 45 days
Product Description

CE ISO High Working Speed automatic aluminum foil rewinding making machine





Main Features for semi automatic aluminum foil roll rewinding machine for making small roll from big roll
1.Knot machine structure is simple, easy to operate, easy maintenance.
2.Applicable to aluminum foil foil rewinding.
3.Depending on the width, the machine can be properly adjusted.
4.Through rewinding, you can produce different specifications of the product.
5.Equipment no noise, low energy consumption, advanced structure.
6.Equipment, electrical appliances imported brands, product stability and good performance, high precision operation.
7.Touch screen control, man-machine interface.





Techinic Data:

Item Content
Material thickness 0.009-0.03mm
Material width 100-600mm
Cutting length 3-300m
Efficiency 180m/min.
Max.dia. Φ600mm
Dia.of coil Φ76mm
Dia.of core Φ30mm. Φ38mm
Air Pressure 0.6Mpa
Servo Motor 1.5kw
Rotary Glue Motor 100YCJ120-3AP
Total power 4.5kw
Total weight 17,000kg
Overal dimension

4000*1500*1750mm

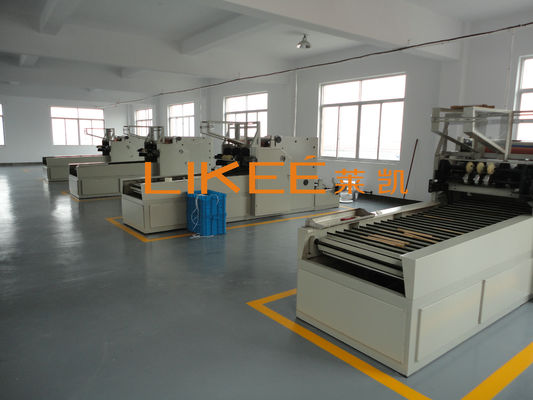

ISO Household Aluminium Foil Rewinding Machine High Speed 350m/Min 0



ISO Household Aluminium Foil Rewinding Machine High Speed 350m/Min 1







Rewinding Roll Thickness    0.009mm~0.030mm
Rewinding Roll Width     100~450mm
Rewinding Roll Inner Diameter     38 or 30mm
Rewinding Roll Outer Diameter    45 ~ 130mm
Production Speed     0~350 m/min
Cardboard Core Thickness     Not less than 3mm
Number Of Spindles     2
Foil Cutting      Automatic
Gluing Way      Manual (automatic optiona on request)
Replace Core     Manual
Mother Roll Diameter     700mm
Inner Core Diameter Of The Mother Roll     76 or 152mm
Air Supply      0.5~0.8 Mpa
Power Supply      380V, 50HZ, 3 PH
Installed Power     3KW
Landscape (L*W*H)      1200 *1000*1000mm
Weight      1000KG



FAQ:



1. Where is your factory ?

Our factory address: No.780 Xinlin Road, Zhelin Town, Fengxian District, Shanghai, China



2. How much power of full production line ?

Full Line is 3KW



3. What kinds of size you can make ?

Generally,  100~450mm width are popular size in current market

4. Is there any extra equipment for this production line ?

Yes, we need air compressor



5. What's the electricity request?

Our machine is Chinese standard . 380V, 50HZ, 3Phase



6. How to contact about more details ?



Whatsapp No & Wechat No. . 0086 18930097829 (Mrs Tina Chu)
