LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC

Name: LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC
Brand: SHANGHAI LIKEE MACHINERY MOULD CO.,LTD
SKU: LKWD-450
Price: 42,000.00 USD
Availability: InStock

Brand Name:	LIKEE
Model Number:	LKWD-450
MOQ:	1 Set
Price:	USD39000-45000
Delivery Time:	1 month
Payment Terms:	T/T , LC

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghai, China

Certification:

CE, ISO

Commodity:

LKWD-450

Product Category:

House Foil Rewinding Machine

Sensor:

Schneider

Pneumatic:

SMC

PLC:

Mitsubishi

Shaft No:

6 Shafts Automatic Changing

Working Speed:

350m/min

Frequency:

50HZ

Main Motor:

4KW

Bearing:

NSK Japan

Change Motor And Gear Reducer:

760 W

Air Pressure:

0.5Mpa

Width Of Material:

260-450mm

Weight:

1600kg

Working Power:

7.5KW

Driven Type:

Electric

Stucture Thickness:

20mm

Packaging Details:

Wooden Case

Supply Ability:

1 set 1 month

Highlight:

House Aluminum Foil Rewinding Automatic Machine

SMC Aluminum Foil Rewinding Automatic Machine

Product Description

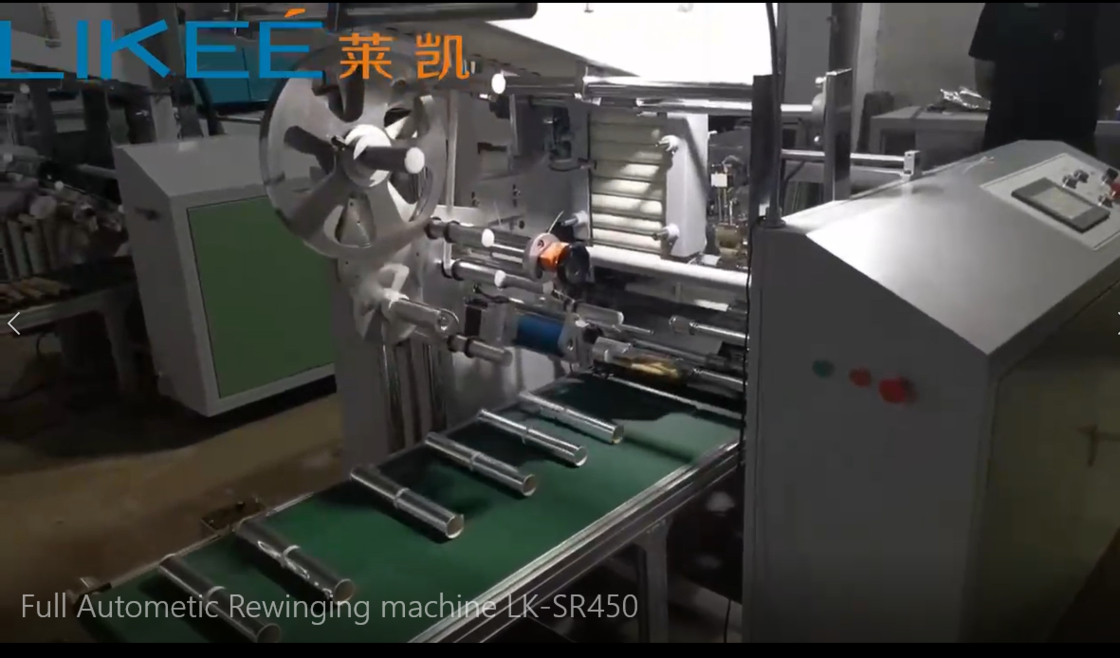

LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC

Product Description:

The LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC is a high-precision piece of equipment specially engineered for rewinding aluminum foil rolls used in food packaging. It comes fitted with a 1.5 KW high-performance rewinding motor, ensuring that rewinding operations are carried out efficiently and with pinpoint accuracy. Weighing 1600kg, it has a sturdy and long-lasting structure, able to withstand continuous operation in industrial settings.

The core dimensions of this rewinder can be tailored to 30mm, 35mm, or 38mm, providing flexibility to accommodate various roll sizes. It is equipped with an unwinder roll measuring 700mm in diameter, which allows for smooth feeding of the foil during the rewinding process. Electrically powered, it delivers consistent and dependable performance.

This Household Food Packaging Aluminum Foil Rewinder is engineered for simple operation, making it suitable for operators with varying levels of expertise. Its easy-to-use interface and controls enable straightforward operation, reducing the time it takes for new users to become skilled.

Features:

Product Name: House Foil Rewinding Machine
Installing dimension: 3500*1800*2100mm
Shaft No: 6 Shafts auto changing
Width of Material: 260-450mm
Diameter of re-winder roll: 90mm/max. Length 300m
Rewinding Material: Aluminum Foil, Baking Paper, Silicon Paper
Core Size of rewinder: 30mm, 35mm, or 38mm(customized)

Technical Parameters:

Grouping:	House Foil Rewinding Machine
Diameter of un-winder roll:	700mm
Pneumatic:	SMC
Structure Thickness:	20mm
Hot Melt Glue Power:	3KW
Rewinding Material:	Aluminum Foil, Baking Paper, Cling Film
PLC:	Mitsubishi
Main Motor:	4KW
Max Mechanical Speed:	350m/min
Change Motor and gear reducer:	760W
Inverter:	Delta Taiwan
Shaft:	6 Shafts Automatic Changing
Working Power:	7.5KW

Applications:

The LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC, boasts a sturdy construction, advanced functions, and stable performance, acting as a flexible solution for various industries. Manufactured in Shanghai, China, it has obtained both CE and ISO certifications, ensuring it meets strict quality and safety regulations.

A minimum order of 1 unit is required, and each machine is securely packaged in wooden boxes to ensure safe transportation. The approximate delivery time is about 1 month, with payment methods such as T/T and LC available to simplify transaction procedures.

With a monthly production output of 1 unit, the machine features a structural thickness of 20mm and an operating power of 7.5KW. It is designed to rewind materials including aluminum foil, baking paper, and cling film, functioning optimally at an air pressure of 0.5Mpa.

LKWD-450 House Aluminum Foil Rewinding Automatic Machine with Pneumatic SMC 0

Support and Services:

Our Product Technical Support team is dedicated to assisting you with any questions or inquiries regarding your Household Foil Rewinding Machine. Whether you need help with fault diagnosis, advice on upkeep, or recommendations for improving the machine’s performance, our team stands ready to help.

In addition to technical support, we offer a range of services to ensure your Household Foil Rewinding Machine operates smoothly and efficiently. These services may include regular maintenance checks, machine upgrades, and training courses for your staff.
