4 Cavities Fast Working Speed Aluminium Foil Container Machine for Metal Punching

4 Cavities Fast Working Speed Aluminium Foil Container Machine for Metal Punching

3 Cavities Aluminium Foil Container Machine

0.8Mpa Aluminium Foil Container Machine

0.8Mpa Foil Container Machine

Place of Origin:

CHINA

Brand Name:

LIKEE

Certification:

CE, ISO

Model Number:

LK-T80

Contact Us

Request A Quote
Product Details
Name:
Aluminium Foil Container Machine
Usage:
Metal Punching
Power:
27KW
Speed:
35-70 Strokes Per Minute
Motor:
SIMENSE
Max Container:
USA Full Size Pan
Min Container:
Small Cake Tart Φ60*30mm
Electric:
380V, 50HZ, 3Phase
Landscape:
7.8*7.1*3.8 Meter
Suitable Raw Material:
Household Aluminum Foil
Foil Thickness:
0.030mm~0.020mm
Color:
Silver White & Orange
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 78,000
Packaging Details
Sea Shipping Standard Wooden Case
Delivery Time
2 months
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1 set 2 months
Product Description

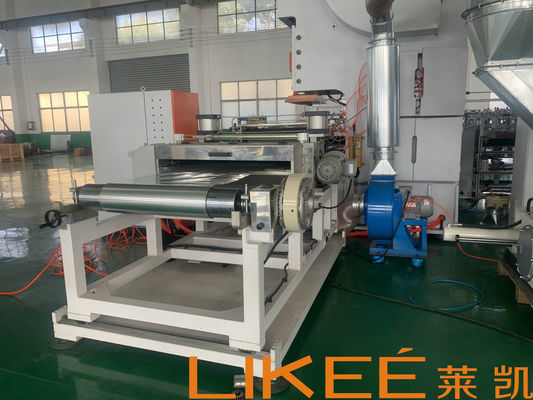

4 Cavities Fast Working Speed Aluminium Foil Container Machine for Metal Punching

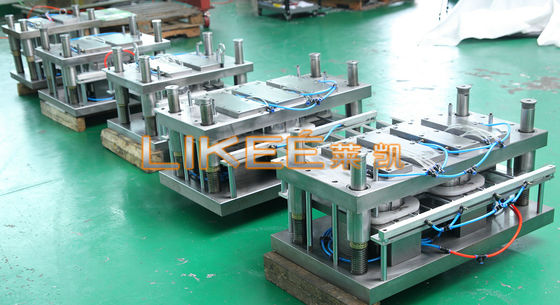

LK-T80 is specially designed for multiple cavity mould production. The press fits various kinds of molds for wrinkle- wall, smooth-wall, pet, airline and folded containers production. Indian 120,150,200,300,250, 450,660,750 ,900 and etc. Gulf 8325,8342,8686,8389,83120, 83185 and etc. American Full size pan , half size pan, oval roast pan , different inch round pan.
LK-T80 can make all items as above . The basic production capacity is 12000 pcs/hour. Which can meet the new project investoment or matured foil container manufactures production requests mostly.

Advantage Introduciton
1. Easy to operate
2. Flexible to exchange mould
3. Top safety device to protect operator
4. High capacity at 15000pcs ~21000pcs/hour
5. Novel design for the roller of stacker,to assure the stronger stability.
6. Emergency stop with the automatic detection.

7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.

10. Electric compelling grease lubrication system.
Packing and Delivery:
1.before packing,We must test the machine and mold to run properly.
2.Stable package,professional and skilled loader reduce damage of product during transport.
3.we fixed our machine in container which will be protected well during shipping.
4.we use the wooden cabinet, protect the machine and mold during shipping.

Basic Specification

Pressure 80Ton
Capacity 1~5 Caivities (Customized as per sample)
Electric 380V, 50HZ, 3Phase
Air Consumption Not less than 0.8Mpa
Total Power 27KW
Working Speed 30~ 75 strokes/min
Stacker Way 1~5 Ways ( Customized as per sample)
Embossing Can be customized
Max Container USA Full Size Pan
Min Container Small Cake Tart Φ60*30mm
PLC Mitsubishi
Motor Simense
Warranty 12 months
After Service Installation at buyer's plant; Traning and guidenance free; Online support



4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 0

4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 1

4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 2

4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 3



Company Brife Introduction

LIKEE has adhering to the principle “Always endeavoring to do still better” . Holding the concept of scientific and technological innovation and environmental protection, the concept of "Environmental Protection, Innovation and Win-win" runs through the product life cycle of R & D, production, logistics and customer service, complying with the mainstream and trend of the development of aluminum foil industry to realize the society and environment.

4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 4
4 Cavities Fast Working Speed  Aluminium Foil Container Machine for Metal Punching 5

FAQ
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
