High-Speed House Foil Rewinding Machine ±2mm Perforation Accuracy & Auto Labeling

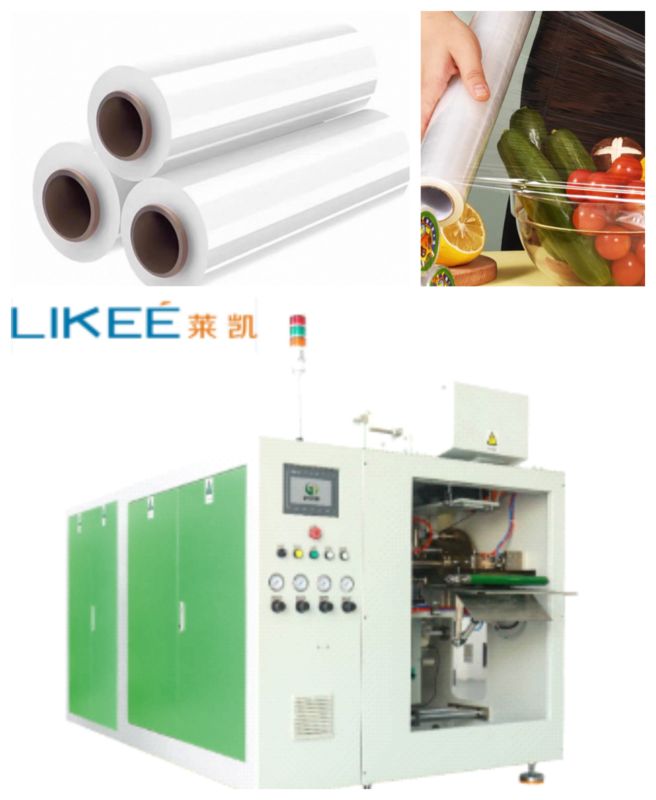

The LK-CF02 Automatic Cling Film Rewinding Machine is a professional high-yield film rewinding equipment developed for the current cling film market. This machine adopts a servo control system for more stable tension control and more precise winding length. It can control the perforation tolerance within ±2mm per segment, while also featuring reverse folding and non-stop short label application functions. The machine delivers superior results with tight, flat film rolls and perfectly aligned ends, meeting the requirements for high-quality, high-yield automated production of cling film rolls.

The machine handles material thickness from 0.009mm to 0.02mm, with a maximum working speed of 700m/min. Finished roll width ranges from 220-330mm, length from 30-500 meters, and maximum finished roll OD is 100mm. Maximum material coil OD is 450mm. Total power is 6.5KW and machine weight is 2000KG.

• Servo Control System - Enables more stable tension control and more precise winding length.
• High-Precision Perforation - Achieves a tolerance of ±2mm for each perforated segment.
• Automatic Shutdown & Alarm Functions - Equipped with automatic detection and alarm for no roll material, no paper core, film breakage, and film jamming on steel rollers.
• Non-Stop Automatic Labeling - Enables non-stop automatic short label application with accurate labeling position.
• Reverse Folding Function - Enables reverse rubbing (folding) function for neatly aligned roll ends.
• Customizable Mother Roll Changing Machine - Available as an option to effectively save material roll changing time and reduce labor costs.
• Motor Configuration Options - Single motor type (winding and unwinding share one motor) / Double motor type (winding and unwinding each use a separate motor).
