Place of Origin:
CHINA
Brand Name:
LIKEE
Certification:
CE, ISO
Model Number:
LK-PS300
Contact Us
Fast Working Speed High Production Capacity Aluminium Foil Sheet Pop Out Machine
Functions & Features
·Automatic counting divided into output in line
·High speed steel cable cutter, folding with vacuum adsorption (Roots vacuum pump adsorption system)
·Magnetic powder brake flatulence axis
·Steel-rubber embossing roller device. Embossing is clear and uniform.
·Frequency conversio
Functions & Features
·Automatic counting divided into output in line
·High speed steel cable cutter, folding with vacuum adsorption (Roots vacuum pump adsorption system)
·Magnetic powder brake flatulence axis
·Steel-rubber embossing roller device. Embossing is clear and uniform.
·Frequency conversion motor drive. Speed is adjustable.
·Automatic cutting
| Electric Brand | Mistibushi |
| Finished product unfolded size | (L)273mm x(W)300/230mm |
| Finished product folded size | (L)136.5mm x(W)300/230mm |
| Finished product folded shape | V shape inter-folded,continuous extraction |
| Embossing device | steel-rubber embossing roller |
| Applicable material | Aluminum Foil |
| Aluminium foil thickness | 0.012-0.015mm |
| Mother roll inner core | 76.2mm (3’’) or 152mm (6’’) |
| Mother roll dimensions | ≤φ600mm x (W)600mm |
| Production efficiency | 400-500 sheets/min |
| Total output | 380V, 50HZ, 27KW |
| Machine weight | 4500KG |
| Machine overall dimensions | 5000x2000x1700mm |
| Machine power | 3KW |
| Power supply | 380V, 50HZ, 3PH+N+E |
| Air supply | 0.5-0.8Mpa |

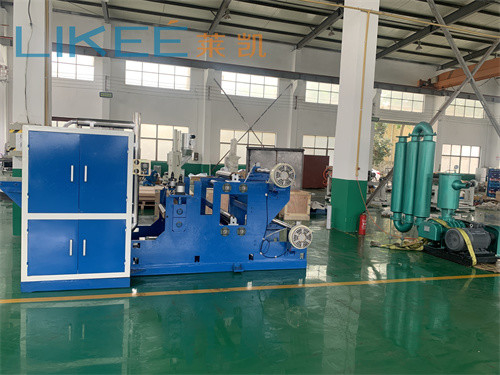

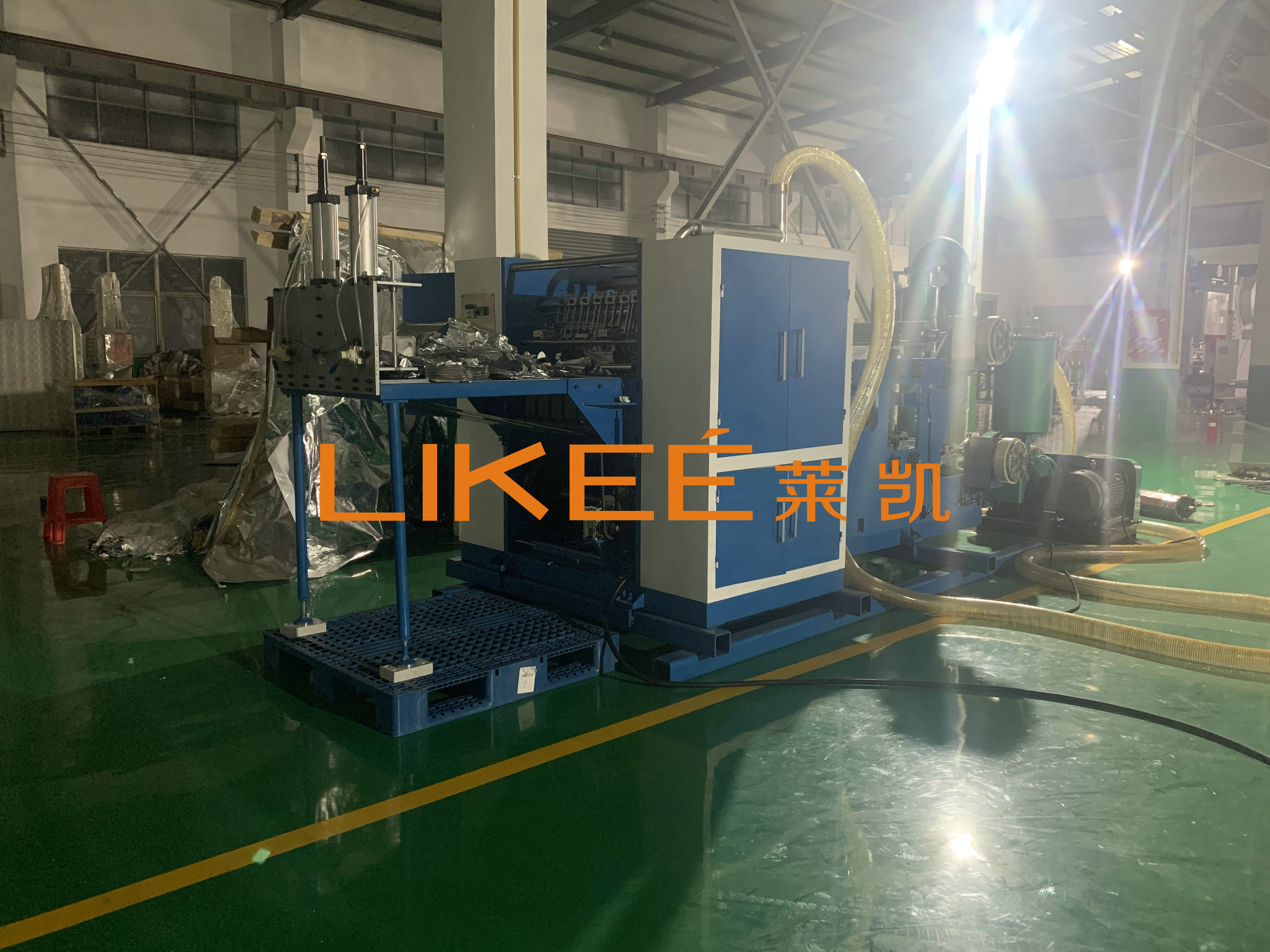

Pop-Up Aluminium Foil Sheet Making Machine LK-PS300 is a professional inter-folded foil sheet machine. This machine absorbs the advantages of similar machines produced both abroad and domestic, and uses vacuum-absorbed inter-folding and automatic counting. The machine has stable performance and high production efficiency.It is the most advanced inter-folded pop-up foil sheet machine.
Production Process: Material feeding → Inter-folding → Forming
FAQ:
1. Where is your factory ?
Our factory address: No.780 Xinlin Road, Zhelin Town, Fengxian District, Shanghai, China
2. How much power of full production line ?
Full Line is 27KW
3. What kinds of size you can make ?
Generally, 300mm and 280mm are most popular data what we make. As per customer samples, we can customize different size machine.
4. Is there any extra equipment for this production line ?
Yes, we need air compressor
5. What's the electricity request?
Our machine is Chinese standard . 380V, 50HZ, 3Phase
