ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities

ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities

MOQ: 1 SET
Price: $50,000 ~ $67,000
Standard Packaging: Sea Shipping Standard Wooden Case
Delivery Period: 30 DAYS
Payment Method: L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Capacity: 50 sets/year
Detail Information
Place of Origin
CHINA
Brand Name
LIKEE
Certification
CE, ISO
Model Number
LK-T63
Pressure:
63Ton
Capacity:
1~5 Cavities (custimized As Per Sample)
Power Supply:
380V, 50HZ, 3Phase
Operator:
Single
Working Speed:
30~75 Strokes/min
PLC:
Mitsubishi
Stacker:
1~4 Ways (customized As Per Sample)
Max Container:
USA Full Size Pan
Min Container:
Cake Tart Φ60 * 20 Mm
Embossing:
Can Be Customized
Total Power:
18.5KW
Landscape:
6.5*6.0*3.6 Meter
Highlight:

5 Cavities Aluminum Foil Container Machine

,

ISO Aluminum Foil Container Machine

,

ISO Foil Container Machine

Product Description

ISO Economic 5 Cavities Fully Automatic Aluminum Foil Container Machine



Aluminum Food Package Container Machine Main Features:
1) This series of press frame is welded by steel plates, small deformation, good rigidity.
2) This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment is convenient and reliable, with emergency stop, inching, single and continuous operation specification.
3) Optional: PLC electrical control system, air cushion, photoelectric safety protection device.


ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities 0ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities 1


Aluminum Foil Container Machine  Specifications:

Pressure              63Ton
Capacity             1~5 Cavities
Electric            380V, 50HZ , 3Phase
Air Consumption           7KW.  Not less than 0.8Mpa
Operator             One Operator
Working Speed            30~75 strokes/min
PLC             Mitsubishi
Stacker             1~4 Ways
Max Container             USA Full Size Pan
Min  Container             Cake Tart Φ60 * 20 mm
Embossing             Can be customized
Total Power             18.5KW
Landscape             6.5*6.0*3.6 Meter





Aluminum Foil Container Machine 63Ton

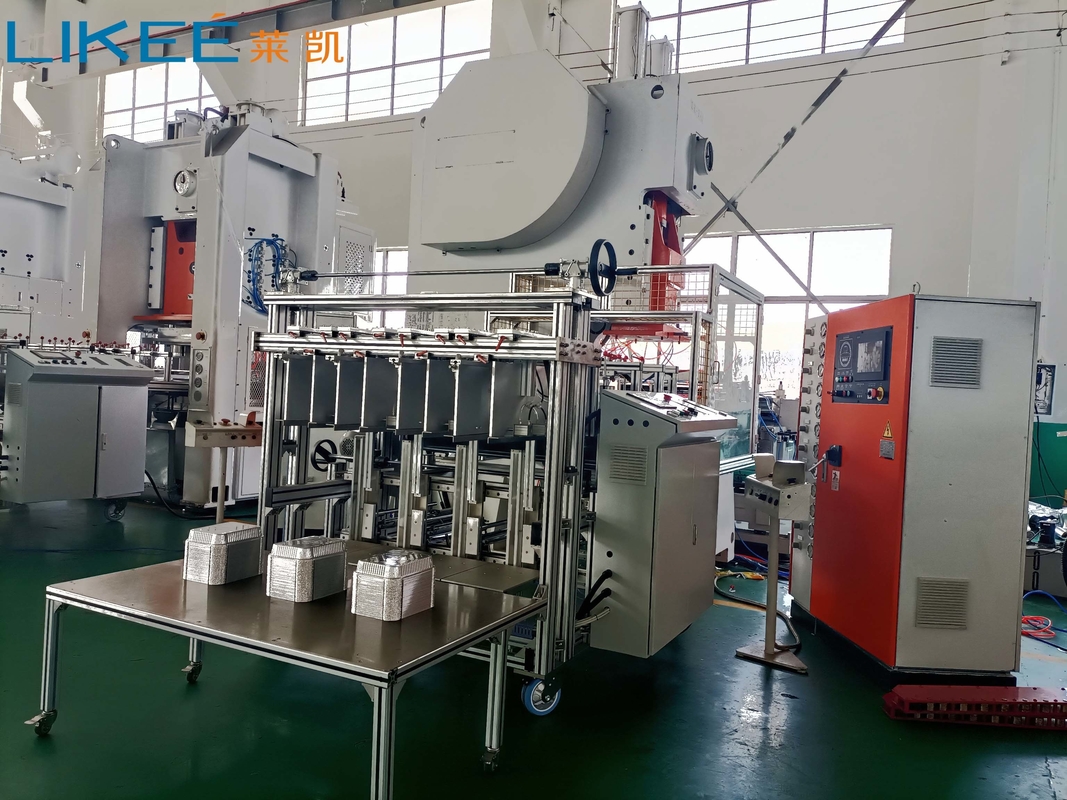

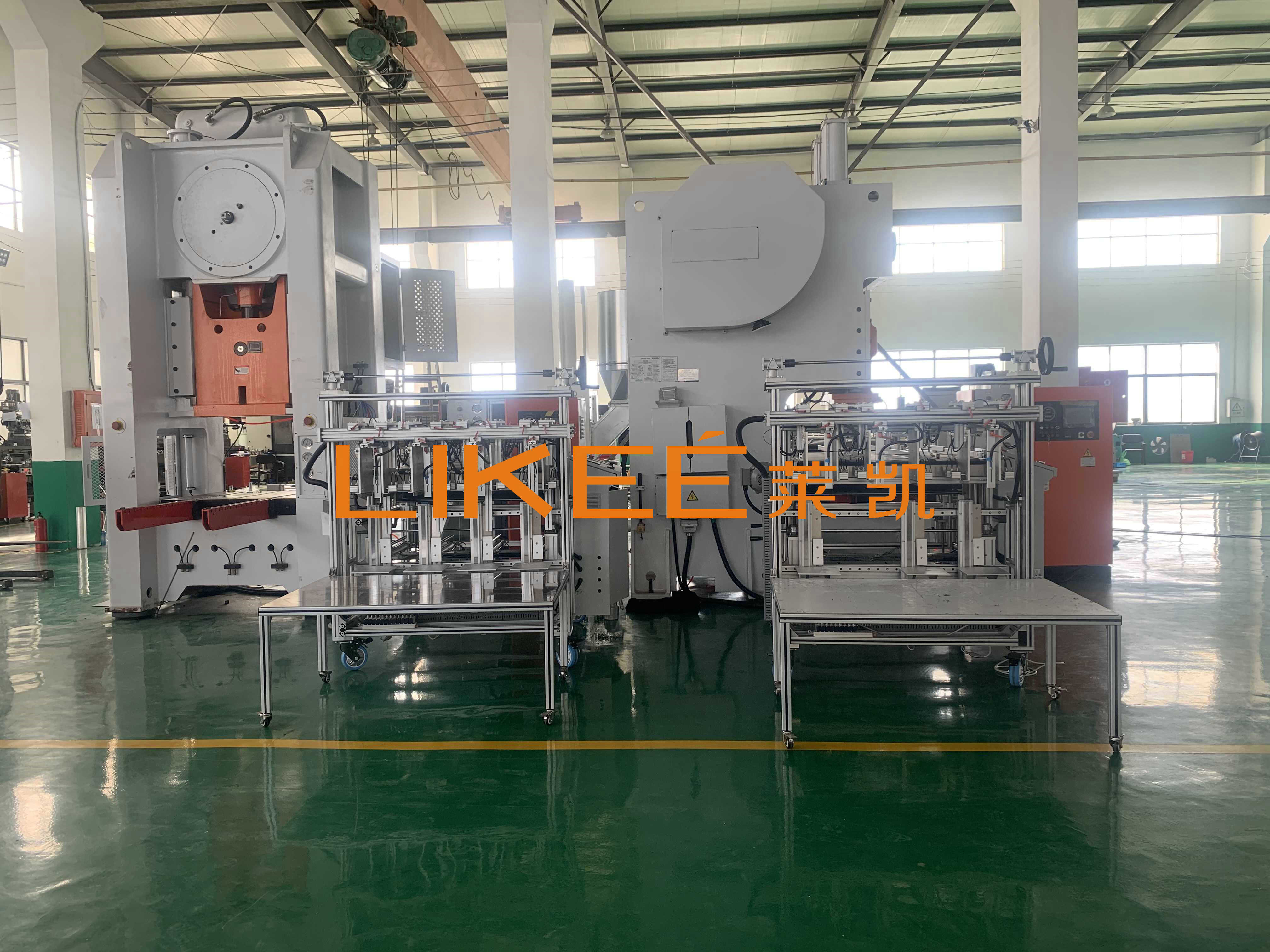

LK-T63 is economic type , which is suitable for new project investment launch. The standard capacity is 1~5 cavities. Working Speed 30~75 strokes/min. This type can make all size samples in current market. One production line only one person can achieve automatic production. The main body of T63 machine is a "C"-frame 63 press. Both in easy mould replacement and surface production, the bedplate of forming machine equipped two movable plate. The press configured with a servo motor, to make sure the high precision control of feeding step and speed. The press fits various kinds of moulds for wrinkle- wall, smooth-wall, pet, airline and folded containers production.



The full line LK-T63 includes components as below

  • Decoiler 850mm
  • Press Machine 63 Ton
  • Auto Stacker With 3 Ways
  • Scrap Aspirator
  • Mould Lifter
  • Scrap Baler


Company Brife Introduction



ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities 2





ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities 3



ISO Aluminum Foil Container Machine Fully Automatic 5 Cavities 4



With the rapid rise in the prices of paper and plastic, and more and more countries execute plastic abandonment, aluminum foil package material is the market tend over the word. The demand of aluminum foil containers, household aluminum foil roller, aluminum foil sheet and the other aluminum foil related products are increasing quickly over world.


LIKEE is specialized in R & D and manufacturing aluminum foil container making machine and moulds since 2010. With the increasing innovation ability, outstanding flexible customization ability, LIKEE provides many effective automatic production scheme to numerous new and old customers all over world. Greatly and effectively reduce the production waste rate, reduce the production cost and improve the production efficiency



LIKEE has adhering to the principle “Always endeavoring to do still better” . Holding the concept of scientific and technological innovation and environmental protection, the concept of "Environmental Protection, Innovation and Win-win" runs through the product life cycle of R & D, production, logistics and customer service, complying with the mainstream and trend of the development of aluminum foil industry to realize the society and environment.





FAQ

Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
Q7: How to contact ?
Whatsapp No. 008618930097829
Email: tina@likee.com.cn
