Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy

Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy

Food Grade Aluminium Foil Container Making Machine

18.5KW Aluminium Foil Container Making Machine

18.5KW Aluminum Foil Container Making Machine

Place of Origin:

CHINA

Brand Name:

LIKEE

Certification:

CE, ISO

Model Number:

LK-T63

Contact Us

Request A Quote
Product Details
Pressure:
63Ton
Capacity:
1~5 Cavities (custimized As Per Sample)
Electric:
380V, 50HZ, 3Phase
Operator:
One Operator
Working Speed:
30~75 Strokes/min
PLC:
Mitsubishi
Stacker:
1~4 Ways (customized As Per Sample)
Max Container:
USA Full Size Pan
Min Container:
Cake Tart Φ60 * 20 Mm
Embossing:
Can Be Customized
Total Power:
18.5KW
Landscape:
6.5*6.0*3.6 Meter
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 67,000
Packaging Details
Sea Shipping Standard Wooden Case
Delivery Time
2 months
Payment Terms
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability
1 set 2 months
Product Description

Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy

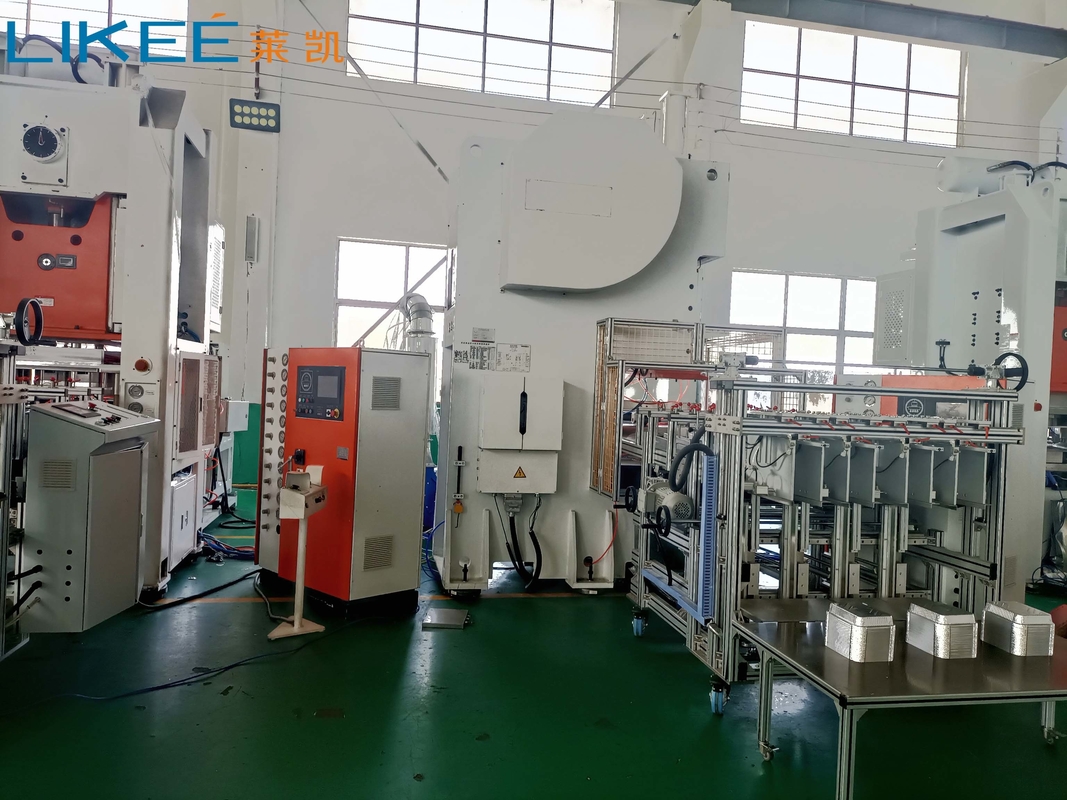

The full line LK-T63 includes components as below

  • Decoiler 850mm
  • Press Machine 63 Ton
  • Auto Stacker With 3 Ways
  • Scrap Aspirator
  • Mould Lifter
  • Scrap Baler

Aluminum Foil Container Machine 63Ton

1. C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.

2. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.

3. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.


Aluminum Foil Container Machine  Specifications:

Pressure              63Ton
Capacity             1~5 Cavities
Electric            380V, 50HZ , 3Phase
Air Consumption           7KW.  Not less than 0.8Mpa
Operator             One Operator
Working Speed            30~75 strokes/min
PLC             Mitsubishi
Stacker             1~4 Ways
Max Container             USA Full Size Pan
Min  Container             Cake Tart Φ60 * 20 mm
Embossing             Can be customized
Total Power             18.5KW
Landscape             6.5*6.0*3.6 Meter



1. adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.

2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf.

3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

4.PLC from Omron electrical control system allows various auto-equipment reprogrammed accord-lng to different requirements and perform various functions,to ensure high reliability and high adaptability,

5. Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.

7. Auto grease lubrication system,easy stroke adjustment mechanism increases press versatility tremendously.

8. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;

9. The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous detection and monitoring reliably.



Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 0Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 1Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 2Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 3Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 4

Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 5Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 6Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 7



Company Brife Introduction



Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 8





Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 9



Food Grade 18.5KW Aluminium Foil Container Making Machine High Accuracy 10



With the rapid rise in the prices of paper and plastic, and more and more countries execute plastic abandonment, aluminum foil package material is the market tend over the word. The demand of aluminum foil containers, household aluminum foil roller, aluminum foil sheet and the other aluminum foil related products are increasing quickly over world.


LIKEE is specialized in R & D and manufacturing aluminum foil container making machine and moulds since 2010. With the increasing innovation ability, outstanding flexible customization ability, LIKEE provides many effective automatic production scheme to numerous new and old customers all over world. Greatly and effectively reduce the production waste rate, reduce the production cost and improve the production efficiency



LIKEE has adhering to the principle “Always endeavoring to do still better” . Holding the concept of scientific and technological innovation and environmental protection, the concept of "Environmental Protection, Innovation and Win-win" runs through the product life cycle of R & D, production, logistics and customer service, complying with the mainstream and trend of the development of aluminum foil industry to realize the society and environment.





FAQ

Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
