50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame

50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame

H Frame Semi Automatic Aluminium Foil Container Making Machine

50HZ Semi Automatic Aluminium Foil Container Making Machine

50HZ Aluminium Foil Container Making Machine

Place of Origin:

CHINA

Brand Name:

LIKEE

Certification:

CE, ISO

Model Number:

LK-ST80

Contact Us

Request A Quote
Product Details
Pressure:
80Ton
Electric:
380V, 50HZ, 3Phase
Production Capacity:
12000 Pcs/hour
Working Speed:
30~75 Strokes/min
PLC:
Mitsubishi
Max Container:
USA Full Size Pan
Min Container:
Cake Tart Φ60 * 20 Mm
Embossing:
Can Be Customized
Total Power:
17.5KW
Landscape:
6.5*6.0*3.6 Meter
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 55,000
Packaging Details
Sea Shipping Standard Wooden Case
Delivery Time
2 months
Payment Terms
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability
1 set 2 months
Product Description

Stroke Adjusted Type 60 Strokes Per Minute Speed Semi Auto Aluminum Foil Container Punch Machine

Semi Automatic Type Machine 80Ton includes components as below

  • Decoiler 1000mm
  • Press Machine 80Ton "H" frame
  • Scrap Aspirator
  • Mould Lifter
  • Scrap Baler

Aluminum Foil Container Machine 80Ton

1. Top Safety and long lifetime, high precision control of feeding step and speed.
2. The replacement of the mould is convenient and easy to change.
3. The machine has memory function for each mould.
4. It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
5. The height of ram is electrically adjustable to satisfied multiple request of different moulds with diverse shapes and sizes.
6. Novel design for the roller of stacker, to assure the stronger stability.
7. Emergency stop with the automatic detection.
8. The width of the lanes can be adjustable to fit different size containers stacking.
9. CNC machining center, and its machining accuracy is very high.
10. Electric compelling grease lubrication system.



50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame 0

50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame 1

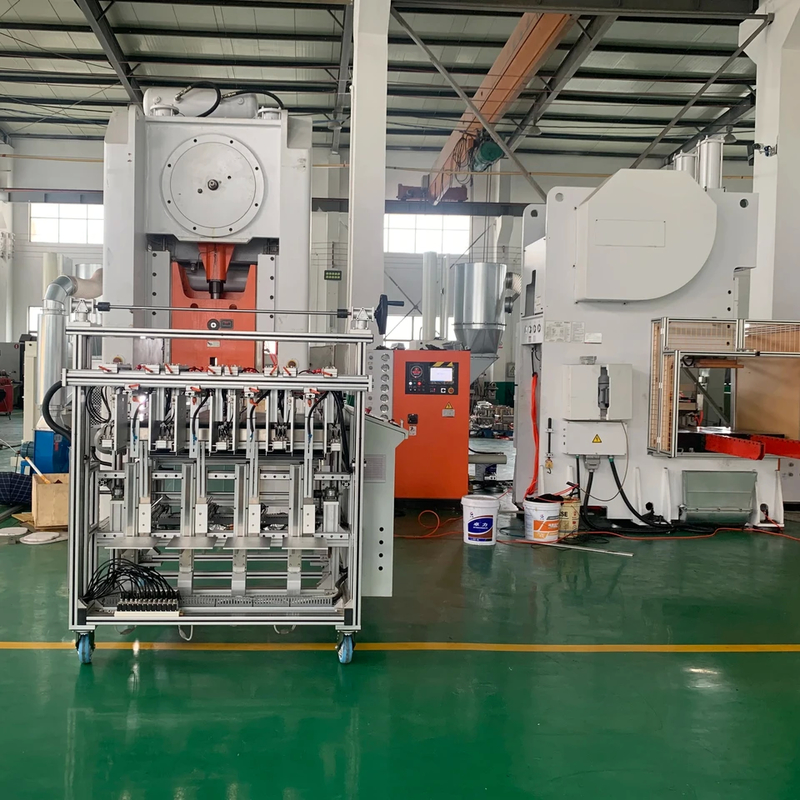

LK-T80 is economic type , which is suitable for new project investment launch.  The standard capacity is 1~5 cavities. Working Speed 30~75 strokes/min. This type can make all size samples in current market. One production line only one person can achieve automatic production. The main body of T80 machine is a "H"-frame 80 press. Both in easy mould replacement and surface production, the bedplate of forming machine equipped two movable plate. The press configured with a servo motor, to make sure the high precision control of feeding step and speed. The press fits various kinds of moulds for wrinkle- wall, smooth-wall, pet, airline and folded containers production.
Aluminum Foil Container Machine  Specifications:

Pressure              80Ton
Capacity             1~5 Cavities
Electric            380V, 50HZ , 3Phase
Air Provide             7KW.  Not less than 0.8Mpa
Production Capacity Per Hour             12000 pcs/hour
Working Speed            30~75 strokes/min
PLC             Mitsubishi
Press Structure              "H" Frame
Max Container             USA Full Size Pan
Min  Container             Cake Tart Φ60 * 20 mm
Embossing             Can be customized
Total Power             17.5KW
Landscape             6.5*6.0*3.6 Meter



Company Brife Introduction

50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame 2


50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame 3

50HZ Semi Automatic Aluminium Foil Container Making Machine H Frame 4

With the rapid rise in the prices of paper and plastic, and more and more countries execute plastic abandonment, aluminum foil package material is the market tend over the word. The demand of aluminum foil containers, household aluminum foil roller, aluminum foil sheet and the other aluminum foil related products are increasing quickly over world.
LIKEE is specialized in R & D and manufacturing aluminum foil container making machine and moulds since 2010. With the increasing innovation ability, outstanding flexible customization ability, LIKEE provides many effective automatic production scheme to numerous new and old customers all over world. Greatly and effectively reduce the production waste rate, reduce the production cost and improve the production efficiency

LIKEE has adhering to the principle “Always endeavoring to do still better” . Holding the concept of scientific and technological innovation and environmental protection, the concept of "Environmental Protection, Innovation and Win-win" runs through the product life cycle of R & D, production, logistics and customer service, complying with the mainstream and trend of the development of aluminum foil industry to realize the society and environment.


FAQ
Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
