380V 50HZ Aluminium Food Container Making Machine Operation Easily

380V 50HZ Aluminium Food Container Making Machine Operation Easily

380V Aluminium Food Container Making Machine

50HZ Aluminium Food Container Making Machine

380V Aluminum Container Making Machine

Place of Origin:

CHINA

Brand Name:

LIKEE

Certification:

CE, ISO

Model Number:

LK-T80

Contact Us

Request A Quote
Product Details
Name:
LK-T80 (3 Or 4 Ways)
Origional Place:
CHINA
Usage:
Aluminum Foil Container Forming Press
Working Speed:
30~75 Strokes/min
Thickness:
30~200micron
Stacker:
1~5 Ways ( Customized As Per Sample)
Maximum Container:
USA Full Size Pan
Minimum Container:
Small Cake Tart Φ60*30mm
Total Power:
26KW
Color:
White And Orange (Can Be Also Customized)
Capacity:
9000~12000 Pcs /hour
Weight:
13Ton
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 78,000
Packaging Details
Sea Shipping Standard Wooden Case
Delivery Time
2 months
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1 sets 2 months
Product Description

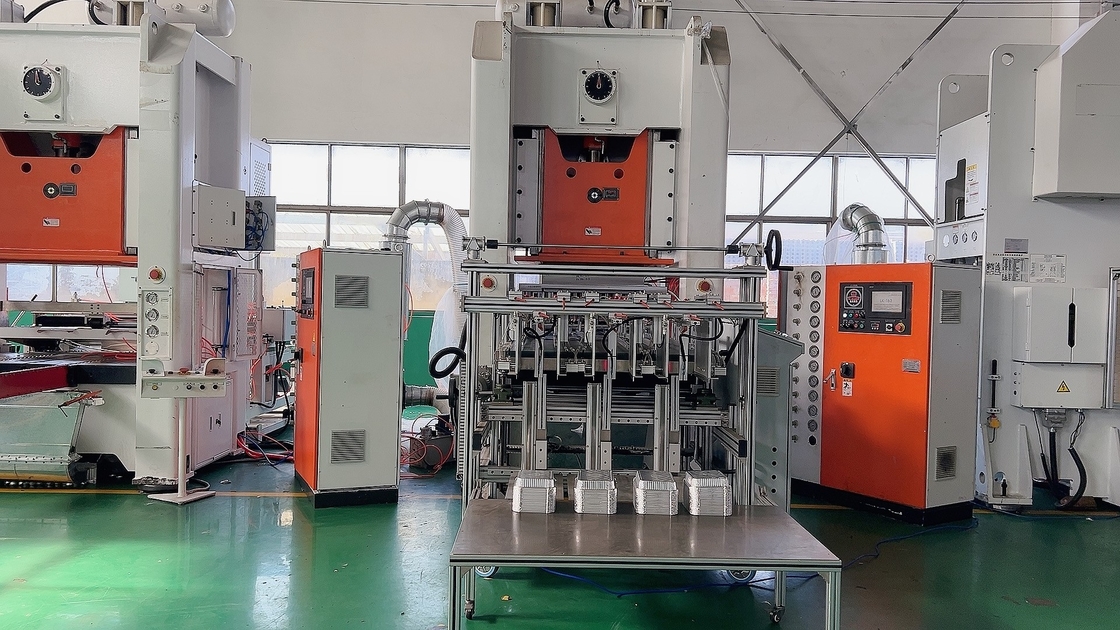

380V 50HZ Operation Easily Fully Automatic Aluminium Foil Container Making Machine For Food Packaging



Full line includes as below:

 Decoiler 1200mm
Press Machine 80Ton
Auto Stacker With 4 Ways

Scrap Aspirator
Mould Lifter
Scrap Baler ( it's optional part. as per customer request)



Advantage:

1.Novel design for the roller of stacker,to assure the stronger stability.
2.Emergency stop with the automatic detection.
3.The width of the lanes can be adjustable to fit different size containers stacking.
4.CNC machining center, and its machining accuracy is very high.
5. Electric compelling grease lubrication system.





Indian 120,150,200,300,250, 450,660,750 ,900 and etc.

Gulf 8325,8342,8686,8389,83120, 83185 and etc.

American Full size pan , half size pan, oval roast pan , different inch round pan .....



 LK-T80 can make all items as below . The basic production capacity is 12000 pcs/hour. Which can meet the new project investoment or matured foil container manufactures production requests mostly.



Basic Specification

ITEM LK-63T LK-80T
Strokes 30-75times/min 30-75times/min
Voltage

3-380V 50HZ

4wires

3-380V 50HZ

4wires

Total Weight

9.2KGS

(approximate)

10.5KGS

(approximate)

Area 6.5mx6m 7.5mx7.0m
Core Coil Head Dia 3min/6inch 3min/6inch
Max. Foil Roll Outer Dia 700mm 800mm
Embossing Device Can be added  Can be added
Oil System Machine Grease Closed Oil System
Stacker Ways  1~3 Ways  1~4 Ways
Structure  "C" Frame  "H" Frame
Total Power 18.5KW 26KW
Max. Foil Width 780mm 1050mm




380V 50HZ Aluminium Food Container Making Machine Operation Easily 0380V 50HZ Aluminium Food Container Making Machine Operation Easily 1380V 50HZ Aluminium Food Container Making Machine Operation Easily 2380V 50HZ Aluminium Food Container Making Machine Operation Easily 3380V 50HZ Aluminium Food Container Making Machine Operation Easily 4380V 50HZ Aluminium Food Container Making Machine Operation Easily 5380V 50HZ Aluminium Food Container Making Machine Operation Easily 6380V 50HZ Aluminium Food Container Making Machine Operation Easily 7380V 50HZ Aluminium Food Container Making Machine Operation Easily 8380V 50HZ Aluminium Food Container Making Machine Operation Easily 9380V 50HZ Aluminium Food Container Making Machine Operation Easily 10380V 50HZ Aluminium Food Container Making Machine Operation Easily 11380V 50HZ Aluminium Food Container Making Machine Operation Easily 12

380V 50HZ Aluminium Food Container Making Machine Operation Easily 13380V 50HZ Aluminium Food Container Making Machine Operation Easily 14380V 50HZ Aluminium Food Container Making Machine Operation Easily 15380V 50HZ Aluminium Food Container Making Machine Operation Easily 16380V 50HZ Aluminium Food Container Making Machine Operation Easily 17380V 50HZ Aluminium Food Container Making Machine Operation Easily 18380V 50HZ Aluminium Food Container Making Machine Operation Easily 19



380V 50HZ Aluminium Food Container Making Machine Operation Easily 20



380V 50HZ Aluminium Food Container Making Machine Operation Easily 21

380V 50HZ Aluminium Food Container Making Machine Operation Easily 22

380V 50HZ Aluminium Food Container Making Machine Operation Easily 23

380V 50HZ Aluminium Food Container Making Machine Operation Easily 24

380V 50HZ Aluminium Food Container Making Machine Operation Easily 25



Company Brife Introduction



380V 50HZ Aluminium Food Container Making Machine Operation Easily 26





380V 50HZ Aluminium Food Container Making Machine Operation Easily 27



380V 50HZ Aluminium Food Container Making Machine Operation Easily 28





FAQ

Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
