380V 50HZ Aluminum Foil Sheet Pop Out Machine Fully Automatic

380V 50HZ Aluminum Foil Sheet Pop Out Machine Fully Automatic

380V Aluminum Foil Sheet Pop Out Machine

50HZ Aluminum Foil Sheet Pop Out Machine

50HZ Fully Automatic Foil Sheet Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Finished Product Folded Size:
(L)136.5mm X(W)300/230mm
Finished Product Folded Shape:
V Shape Inter-folded,continuous Extraction
Embossing Device:
Steel-rubber Embossing Roller
Aluminium Foil Thickness:
Mother Roll Inner Core:
76.2mm (3'') Or 152mm (6'')
Mother Roll Dimensions:
≤φ600mm X (W)600mm
Production Efficiency:
400-500 Sheets/min
Machine Overall Dimensions:
Air Supply:
Finished Product Length:
(L)273mm X(W)300/230mm
Payment & Shipping Terms
Minimum Order Quantity
USD 49,000 ~ 60,000
Packaging Details
sea shipping standard wooden case
Delivery Time
2 months
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1 set 2 months
Product Description


380V 50HZ High Speed Fully Automatic Automatic Aluminium Foil Sheet Folder Making Machine For Food Package



Pop-Up Aluminium Foil Sheet Making Machine LK-PS300 is a professional inter-folded foil sheet machine. This machine absorbs the advantages of similar machines produced both abroad and domestic, and uses vacuum-absorbed inter-folding and automatic counting. The machine has stable performance and high production efficiency.It is the most advanced inter-folded pop-up foil sheet machine.

Production Process: Material feeding → Inter-folding → Forming


Functions & Features

·Automatic counting divided into output in line

·High speed steel cable cutter, folding with vacuum adsorption (Roots vacuum pump adsorption system)

·Magnetic powder brake flatulence axis

·Steel-rubber embossing roller device. Embossing is clear and uniform.

·Frequency conversion motor drive. Speed is adjustable.

·Automatic cutting


Electric Brand Mistibushi
Finished product unfolded size (L)273mm x(W)300/230mm
Finished product folded size (L)136.5mm x(W)300/230mm
Finished product folded shape V shape inter-folded,continuous extraction
Embossing device steel-rubber embossing roller
Applicable material Aluminum Foil
Aluminium foil thickness 0.012-0.015mm
Mother roll inner core 76.2mm (3’’) or 152mm (6’’)
Mother roll dimensions ≤φ600mm x (W)600mm
Production efficiency 400-500 sheets/min
Total output 380V, 50HZ, 27KW
Machine weight 4500KG
Machine overall dimensions 5000x2000x1700mm
Machine power 3KW
Power supply 380V, 50HZ, 3PH+N+E
Air supply 0.5-0.8Mpa

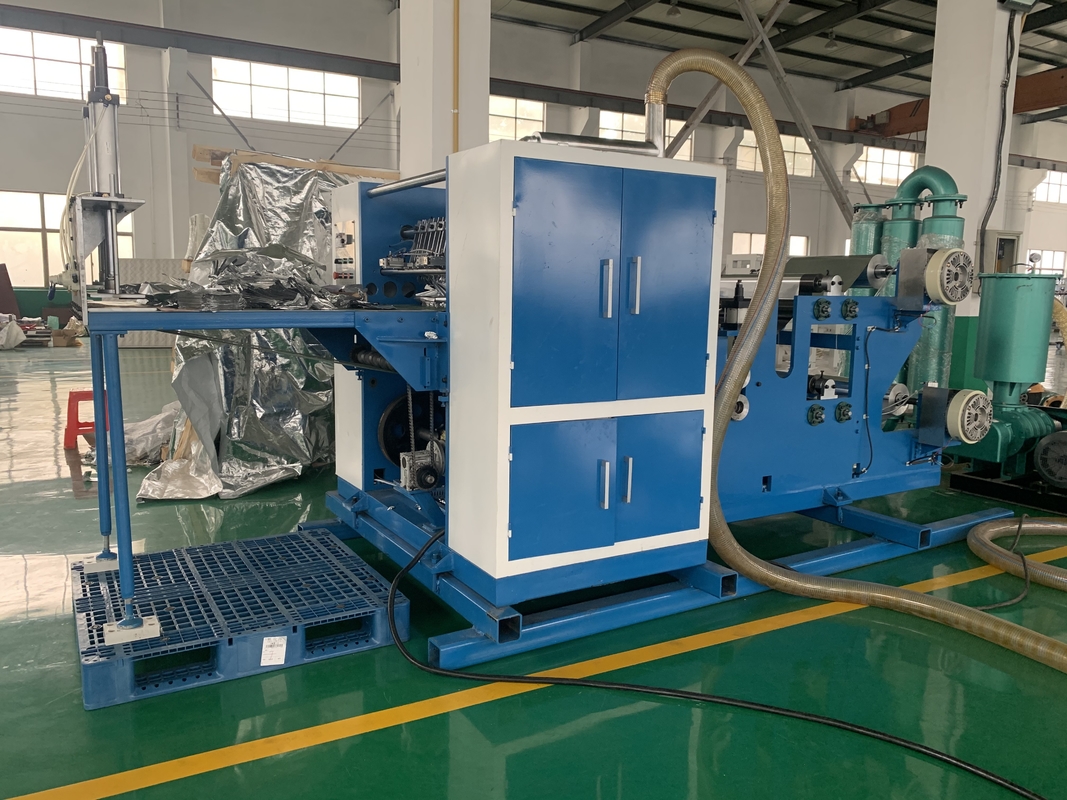

380V 50HZ Aluminum Foil Sheet Pop Out Machine Fully Automatic 0

380V 50HZ Aluminum Foil Sheet Pop Out Machine Fully Automatic 1




1. Where is your factory ?

Our factory address:  No.780 Xinlin Road, Zhelin Town, Fengxian District, Shanghai, China


2.  How much power of full production line ?

Full Line is 27KW


3.  What kinds of size you can make ?

Generally, 300mm and 280mm are most popular data what we make.  As per customer samples, we can customize different size machine.


4. Is there any extra equipment for this production line ?

Yes, we need air compressor


5. What's the electricity request?

Our machine is Chinese standard .  380V, 50HZ, 3Phase


6. How to contact about more details ?


Whatsapp No & Wechat No. .  0086 18930097829 (Mrs Tina Chu)
