Aluminium Foil Container Making Machine 130 Ton H Frame Custom Mold Design & Manufacturing

Name: Aluminium Foil Container Making Machine 130 Ton H Frame Custom Mold Design & Manufacturing
Brand: SHANGHAI LIKEE MACHINERY MOULD CO.,LTD
SKU: LK-T130
Price: 47.00 USD
Availability: InStock

Brand Name:	LIKEE
Model Number:	LK-T130

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghahi, China

Certification:

CE, SGS, ISO9001, and ISO14001

Capacity:

130ton

Product Title:

Aluminium Foil Container Making Machine

Customization Service:

Custom Mold Design & Manufacturing

Frame Type:

H Frame

Installed Power:

30 KW

PLC:

Mitsubishi

Main Motor:

ABB

Highlight:

130 Ton Aluminium Foil Container Making Machine

H Frame Aluminum Foil Container Machine

Custom Mold Design Foil Container Press

Product Description

Aluminium Foil Container Making Machine 130 Ton H Frame Custom Mold Design & Manufacturing

Machine Overview

As a manufacturer with 15 years of export experience, we don't just sell machines; we provide personalized, one-stop aluminum foil container production line solutions for both new investors and established factories.

For New Investors

Sample Selection: Leverage our 15 years of industry insight to choose trending, marketable foil container samples, reducing your investment risk from the source.
Factory Layout Planning: We provide scientific and rational workshop layout plans based on your product type and capacity needs, ensuring efficient workflow and optimal space utilization.
Tailored Production Lines: Based on your budget, target output, and factory size, we recommend the most suitable 130-ton production line solution.

For Existing Factories

Custom Mold Design: Need a new product? Send us your sample or drawing, and our in-house engineers will design and manufacture high-end, wrinkle-free, or ordinary cavity molds.
Retrofit Services: We can customize molds to fit your existing machines (compatible with brands from Italy, Korea, India, China, etc.) to help you upgrade at a lower cost.

Our Commitment

From trial runs and on-site installation to 24/7 after-sales support, we ensure your production line runs smoothly before and after delivery.

Features & Core Selling Points

One-Stop Custom Mold Service: Full-process tooling from design to manufacturing. Support for single-cavity to multi-cavity molds (full edge, folded edge, reverse edge).
High Efficiency & Labor Saving: "One Operator, One Machine" capability. Speeds up to 35-70 strokes/min with automatic counting and fault alarms on the touch screen.
Robust H-Frame Structure: 130 tons of high impact. Heavy-duty build quality ensures the main engine has a service life of over 30 years.
Premium Global Components: Equipped with Mitsubishi PLC, ABB Main Motor, and Schneider low-voltage electrical systems for unmatched stability.
Material Saving & Versatility: Compatible with both thin and thick aluminum foil. Ensures product strength while saving raw material costs.
Safety & Convenience: Enclosed lubrication system (clean and oil-saving). Safety doors that automatically stop the machine. Quick mold changing device (stores up to 60 sets of mold parameters).

Technical Specifications

Specification	LK-T130 (130 Ton)
Press Capacity	130 Ton
Installed Power	30 KW
Stroke	240mm Fixed (150-260mm Adjustable is Optional)
PLC Controller	Mitsubishi
Main Motor	ABB
Low Voltage Electrical	Schneider
Working Speed	35 - 70 Strokes/min
Solenoid Valves	12 (Electronically controlled with servo motor)
Feeder Level Adjustment	From 150mm to 300mm
Workplate Dimension	1500 * 1000 mm
Slider Dimension	900 * 600 mm
Ram Adjustment	80 mm
Max Mould Dimension	1500mm * 1000mm
Max Foil Passage Width	1450 mm
Total Weight	17000 KG

Frequently Asked Questions

Q1: Do you provide custom mold design and manufacturing?

A: Yes. We complete the entire set of mold production from design to manufacturing. We can customize ordinary wrinkle wall or high-end smooth (wrinkle-free) container molds according to your samples. We also offer a one-stop solution for various punch presses.

Q2: Can the molds you make be installed on other machines?

A: Yes. We can customize molds for various punch presses, including brands from Italy, South Korea, India, China, etc. We only need the specific installation dimensions of your machine mold to proceed.

Q3: What information is needed for customizing molds?

A: To start the mold design, we need the specific installation dimensions of your machine and the sample/drawing of the aluminum foil container you want to produce.

Q4: How do you ensure the machine is easy to operate and maintain?

A: The LK-T130 features a user-friendly touch screen with automatic alarms and fault displays. It has a quick mold changing device and can store up to 60 sets of mold parameters. The enclosed lubrication system ensures clean production and easy maintenance.

Q5: What kind of after-sales service do you offer?

A: We provide professional on-site trial running and installation debugging to ensure everything works perfectly before delivery. Plus, we offer 24/7 all-weather after-sales technical support to keep your production line running continuously.

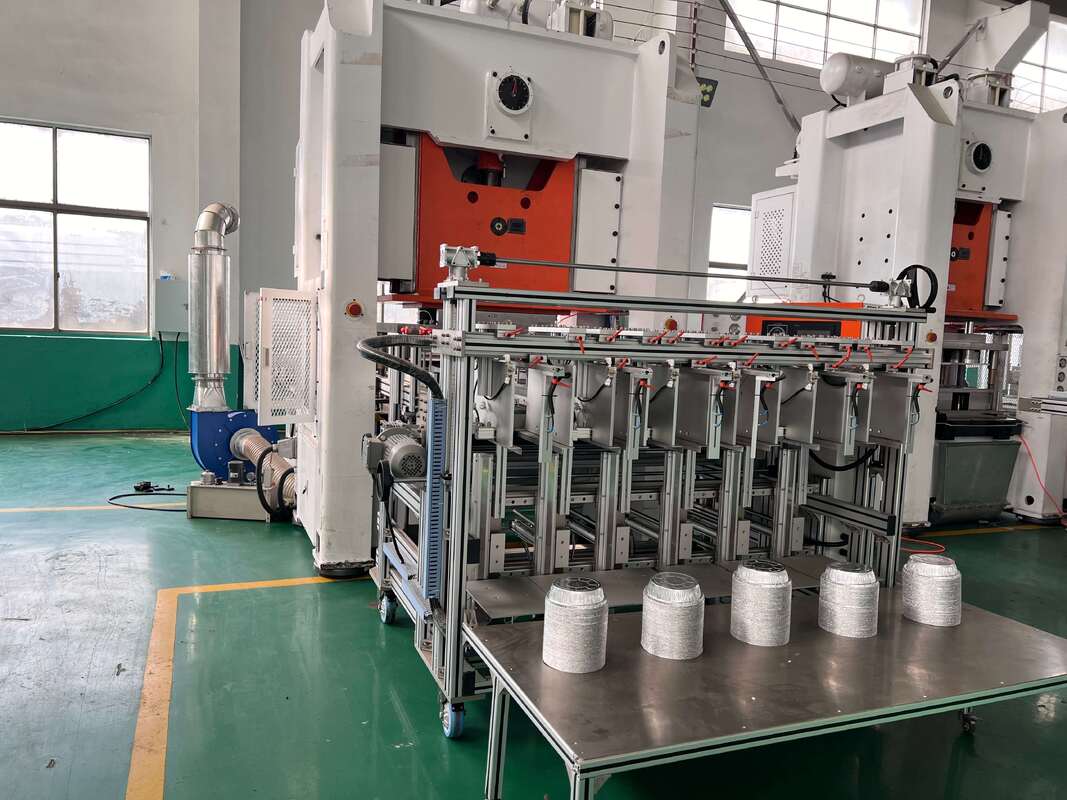

Factory Display
