ISO 4 Cavities Silver Alufoil Container Making Machine

1 SET
MOQ
USD 78,000
Price
ISO 4 Cavities Silver Alufoil Container Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure: 80Ton
Air Pressure: Not Less Than 0.8Mpa
Compressor Power: 11KW
Total Line Power: 26KW
Working Speed: 30~75 Strokes/min
Electric: 380V 50HZ 3Phase
Max Container: USA Full Size Pan
Min Container: Small Cake Tart Φ60*30mm
Landscape: 7.5*7.0*3.8MM
High Light:

4 Cavities Alufoil Container Making machine

,

ISO Alufoil Container Making machine

,

ISO silver foil container making machine

Basic Infomation
Place of Origin: CHINA
Brand Name: LIKEE
Certification: CE, ISO
Model Number: LK-T80
Payment & Shipping Terms
Packaging Details: Sea Shipping Standard Wooden Case
Delivery Time: 2 months
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 sets 2 months
Product Description



4 Cavities Stable Working Stability Fully Automatic Alufoil Food Container Making Machine With Best Price



The press line LK-T80/T130 is designed and developed specially for the multiple cavity mould production. The production capacity is 4 to 6 cavities.



The main body of press line LK-T80/T130 is a “H” frame press. All in easy mould replacement and surface production. The working plate of forming machine equipped two movable plates.



The press configured with a servo motor, to make sure the high precision control of feeding step and speed. The height of the feeding system is automatically adjustable to match the strip height of the tool currently in use on the press.



There are 12 electronic cams controlled by a PLC, providing easy toll set-up. The functional usage of multiple cavity moulds can be achieved, by large number of air outlet laid on press.



The LK-T80/T130 press is equipped with 5 air tanks. The pneumatic control panel is more easy to operate. The press fits various kinds of moulds for wrinkle-wall, smooth-wall, pet, airline and folded containers production.

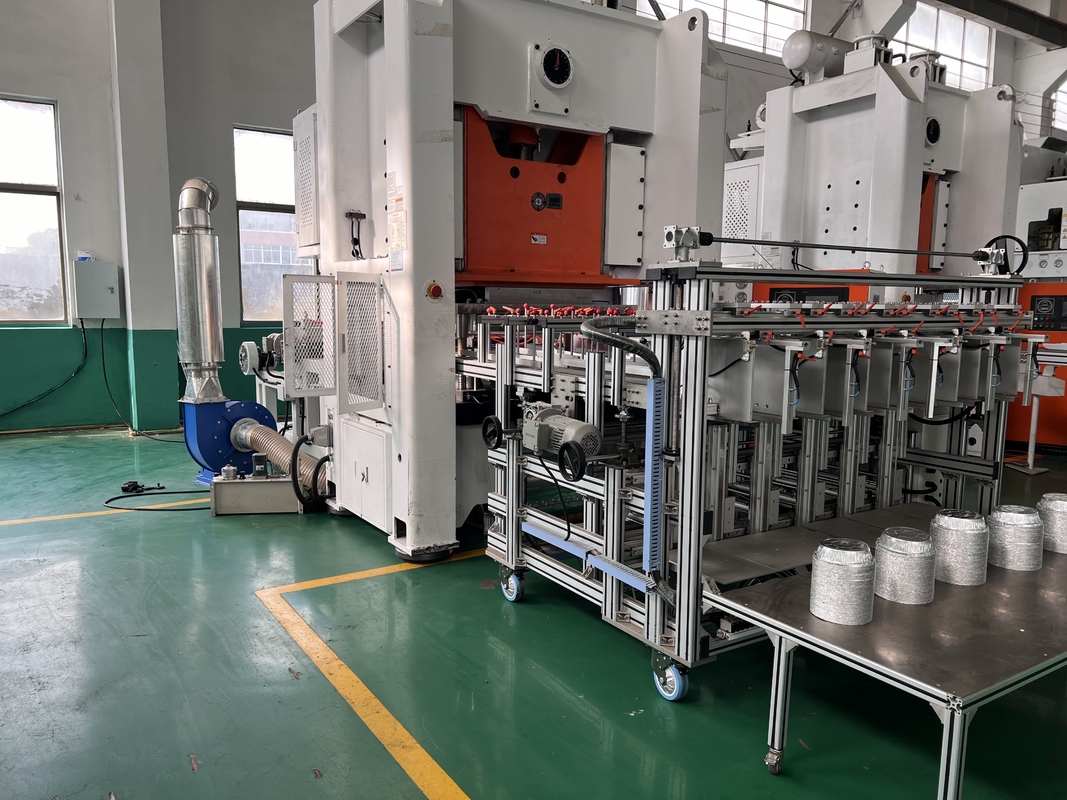

Complete press line LK-T80/T130 include the following equipments:

Decoiler + Press T80/T130 + Mould Lifter + Safety Door + Scrap Aspirator + Control Cabinet + Auto Stacker 4 or 5 Ways + Scrap Baler





Technic Specification

Pressure     80Ton
Capacity     1~5 Caivities (Customized as per sample)
Electric      380V, 50HZ, 3Phase
Air Consumption       Not less than 0.8Mpa
Operator      One Operator
Working Speed     30~ 75 strokes/min
Stacker Way     1~4 Ways ( Customized as per sample)
Embossing      Can be customized
Max Container     USA Full Size Pan
Min Container     Small Cake Tart Φ60*30mm
PLC    Mitsubishi
Motor    Simense
Warranty      12 months
After Service     Installation at buyer's plant; Traning and guidenance free; Online     support

ISO 4 Cavities Silver Alufoil Container Making Machine 0ISO 4 Cavities Silver Alufoil Container Making Machine 1ISO 4 Cavities Silver Alufoil Container Making Machine 2ISO 4 Cavities Silver Alufoil Container Making Machine 3ISO 4 Cavities Silver Alufoil Container Making Machine 4

ISO 4 Cavities Silver Alufoil Container Making Machine 5

ISO 4 Cavities Silver Alufoil Container Making Machine 6

























Company Brife Introduction



ISO 4 Cavities Silver Alufoil Container Making Machine 7

ISO 4 Cavities Silver Alufoil Container Making Machine 8



ISO 4 Cavities Silver Alufoil Container Making Machine 9





With the rapid rise in the prices of paper and plastic, and more and more countries execute plastic abandonment, aluminum foil package material is the market tend over the word. The demand of aluminum foil containers, household aluminum foil roller, aluminum foil sheet and the other aluminum foil related products are increasing quickly over world.


LIKEE is specialized in R & D and manufacturing aluminum foil container making machine and moulds since 2010. With the increasing innovation ability, outstanding flexible customization ability, LIKEE provides many effective automatic production scheme to numerous new and old customers all over world. Greatly and effectively reduce the production waste rate, reduce the production cost and improve the production efficiency



LIKEE has adhering to the principle “Always endeavoring to do still better” . Holding the concept of scientific and technological innovation and environmental protection, the concept of "Environmental Protection, Innovation and Win-win" runs through the product life cycle of R & D, production, logistics and customer service, complying with the mainstream and trend of the development of aluminum foil industry to realize the society and environment.





FAQ

Q1: Do you accept customized orders?
A: Yes, we do.
Q2: what about leadtime?
A: The fastest delivery can be 5~6 weeks once the order is confirmed.
Q3: What are the terms of payment and currencies do you accept?
A: T/T,L/C at sight ,Cash,Paypal,Western Union.
Q4: How to purchase raw material or lubricating oil?
A: LIKEE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.
Q5: Warranty for machines and moulds?
A: We gurantee a period of 12 months from the date of machine & mould installation and setting to work.
Q6:How to install machine and train our staff on our factory?
A: Yes, we do.

We’ll send our engineers to your factory to install, test machines and give your workers training guidance.
Q7: How to contact ?
Whatsapp No. 008618930097829
