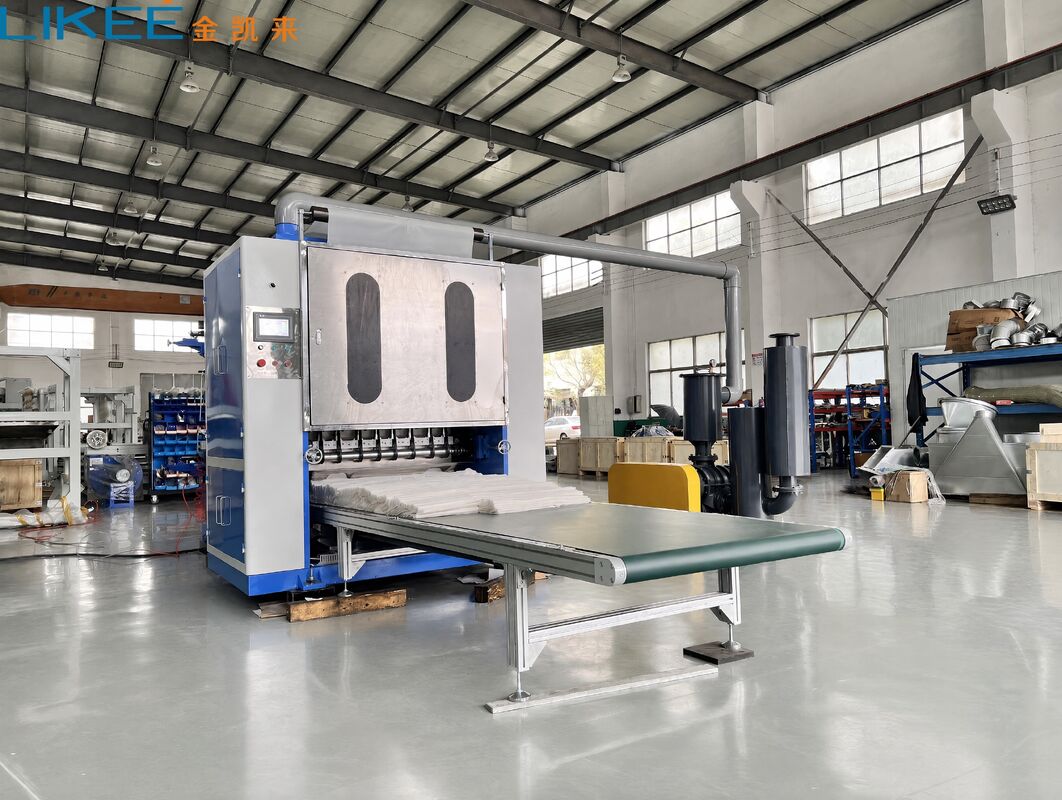

Pop Up WAX Paper Folding Machine Baking Paper Sheets

Name: Pop Up WAX Paper Folding Machine Baking Paper Sheets
Brand: SHANGHAI LIKEE MACHINERY MOULD CO.,LTD
SKU: LKWP-980
Price: 57.00 USD
Availability: InStock

Brand Name:	LIKEE
Model Number:	LKWP-980

Detail Information

Product Description

Detail Information

Place of Origin:

Shanghahi, China

Certification:

CE, SGS, ISO9001, and ISO14001

Machine Type:

Pop Up Wax Paper Folding Machine

Finished Product:

Pop Up Baking Paper Sheets

Fold Shape:

V-fold + Cross Fold, Interlocking

Control:

7-inch Touch Screen

Power Supply:

380V, 50Hz, 3PH

Highlight:

7-inch Touch Screen Wax Paper Folding Machine

V-fold Cross-folding Pop Up Wax Paper Folding Machine

250-400 Sheets per Minute Wax Paper Folding Machine

Product Description

Product Overview

The LKWP-980 pop up wax paper folding machine converts wax paper or one-sided silicone paper rolls into pop up baking paper sheets. The roll is unwound, tension controlled, slit, V-folded and cross-folded so that the finished sheets interlock — pulling one sheet out of the box brings the next one up.

The finished unfolded sheet length is 270mm, and the web can be slit into multiple rows across a width of up to 950mm. Rows per cycle multiplied by single-row speed set the overall output, which runs at 250–400 sheets per minute per row and varies with row count, paper grammage and web width.

Cut-off can be serrated or straight. Serrated edges suit baking use where sheets are torn apart; straight edges suit flat stacking and downstream boxing. The machine accepts 30–60 gsm wax paper and one-sided silicone paper.

The line is driven by a main motor, a Roots fan, a tension motor and a discharge conveyor, all operated from a 7-inch touch screen. Main motor 4kW, tension motor 2kW, Roots fan 11kW, discharge conveyor 400W, 380V three-phase supply, 0.5–0.8 MPa air pressure, 6500kg total gross weight.

Technical Parameters

Specification	LKWP-980
Finished unfolded size	Length 270mm, other sizes customized
Slitting width	Slitting within 950mm
Finished folded size	Folded length 135mm, width within 950mm
Finished shape	V-fold cross-folding, continuous extraction type
Cut-off	Serrated or straight, either way
Applicable raw materials	30–60 gsm wax paper or one-sided silicone paper
Raw paper core	76mm (3 inch)
Raw material size	≤φ800mm * maximum width 930mm
Processing capability	Single-row 250–400 sheets/min * number of slitting rows
Control method	7-inch touch screen
Roots fan motor	380V 50Hz 11kW
Main motor	380V 50Hz 4kW
Tension motor	380V 50Hz 2kW
Discharge conveyor	380V 50Hz 400W
Main machine size	4200 * 2150 * 1950mm
Roots fan size	2300 * 800 * 2600mm
Power supply	380V, 50Hz, 3PH + N + E
Air pressure	0.5–0.8 MPa, 300 L/min
Total gross weight	6500kg

Functions & Advantages

Functions

Unwinding with tension control keeps the web steady before and after folding, reducing drift and misaligned folds.
Multi-row slitting: the web is slit into rows within 950mm so several rows of pop up sheets form in one pass.
V-fold plus cross fold: sheets interlock, so the next sheet follows when the top one is pulled.
Serrated or straight cut-off on the same machine, matched to different use and packing needs.
Continuous pop up discharge onto a conveyor, ready for the boxing step.
7-inch touch screen for running status and parameter settings.

Advantages

One machine covers mainstream baking paper grades: 30–60 gsm wax paper and one-sided silicone paper both run, so grade changes do not require a different machine.
Fold structure drives the pull-out experience: interlocked sheets stay stacked and feed smoothly once boxed.
Output scales with row count: 250–400 sheets/min per row multiplies with each added slitting row.
Custom sizing: 270mm unfolded length is the standard, other lengths can be made to order.
Transparent build: motor, fan and conveyor ratings plus machine footprints are listed item by item, which helps with shop-floor power, air and layout planning.

Product FAQ

Q1: What does a pop up wax paper folding machine do?

A pop up wax paper folding machine converts wax paper or silicone paper rolls into interlocking baking paper sheets. Because the sheets are folded to overlap, pulling one sheet out of the box lifts the next one. The LKWP-980 does unwinding, slitting, V-fold, cross fold and cut-off in one continuous line.

Q2: Which paper grades can it run?

30–60 gsm wax paper or one-sided silicone paper. The 76mm (3 inch) paper core and up to 930mm web width cover common commercial roll sizes.

Q3: What is the finished sheet size?

Standard unfolded length is 270mm, folded down to about 135mm. Sheet width is set by slitting and can be arranged across a web of up to 950mm. Non-standard unfolded lengths can be customized.

Q4: How fast is the output?

250–400 sheets per minute for each slitting row. Total output equals that single-row figure multiplied by the number of rows, so a wider web with more rows yields proportionally more sheets.

Q5: Serrated or straight edge — which should I choose?

Serrated edges tear apart cleanly and suit baking use where sheets are separated by hand. Straight edges stack flat and suit automated box packing. The LKWP-980 supports both, so the choice is yours rather than fixed at purchase.

Q6: Does it handle both wax paper and silicone paper?

Yes. Both 30–60 gsm wax paper and one-sided silicone paper run on the same machine. Wax paper suits dry baking and lining work, silicone paper suits greasier or higher-temperature use. Switching between them is a parameter and roll change, not a machine change.

Q7: What are the facility requirements?

380V 50Hz three-phase with neutral and earth, 0.5–0.8 MPa air pressure at 300 L/min. Total motor power adds up to 17.4kW across the Roots fan (11kW), main motor (4kW), tension motor (2kW) and discharge conveyor (400W). Footprint is 4200 * 2150 * 1950mm for the main machine plus 2300 * 800 * 2600mm for the Roots fan, 6500kg gross weight.

Q8: How is the machine controlled?

Through a 7-inch touch screen. Operators set folding and slitting parameters and read running status from the same panel.

Q9: Is the pop up sheet the same as a parchment sheet?

In this machine they refer to the same finished article, with the paper grade being the difference. Running 30–60 gsm one-sided silicone paper produces what buyers usually call pop up baking paper or parchment sheets; wax paper produces the wax paper version.

Q10: Can the finished sheets be boxed automatically?

The machine discharges continuously onto an outfeed conveyor, which is the feed point for a downstream boxing line. Boxing itself is a separate unit, and LIKEE can advise on matching it to the LKWP-980.

Machine Operation

Pop Up WAX Paper Folding Machine Baking Paper Sheets

Video: LKWP-980 pop up wax paper folding machine in operation.
