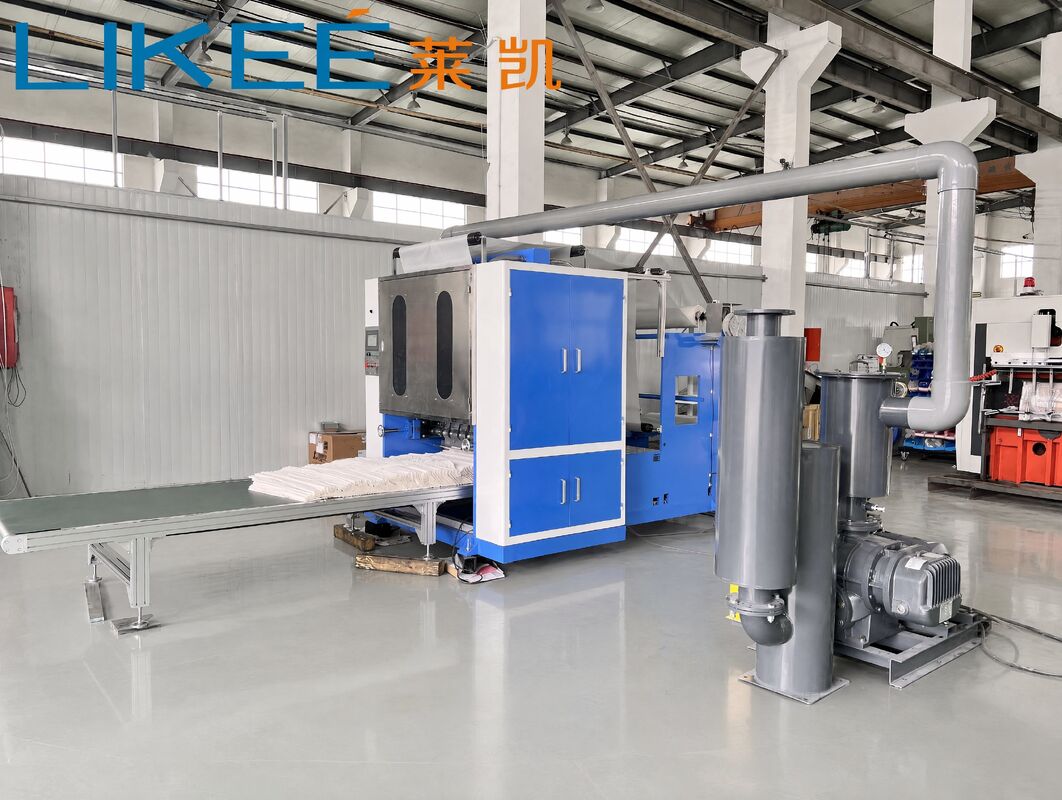

Pop Up Wax Paper Folding Machine, 250–400 Sheets per Minute

The LKWP-980 is a pop-up wax paper folding machine. It folds wax paper or one-sided silicone paper into interleaved sheets at 250 to 400 sheets per minute on a single row, and slits the web to the finished width within a 950 mm range. Standard sheet length is 270 mm unfolded and 135 mm folded; other sheet lengths are made to order.

Paper unwinds from a 76 mm core roll of up to 800 mm diameter and 930 mm width. The web is slit to the required width, folded in a V-fold cross pattern so each sheet overlaps the next one, and cut with a serrated or straight edge. Sheets leave the machine on the discharge conveyor. A Roots fan unit and the discharge conveyor are part of the standard configuration, and the machine is set up from a 7-inch touch screen.

The LKWP-980 suits converters and food service suppliers who pack wax paper sheets for sandwich wrap, deli sheets and bakery liners. Sheet length and slitting width are both customizable, so one machine platform can cover several sheet sizes. LIKEE has built aluminum foil and paper converting machinery since 2010 and provides overseas installation service.

• Multi-row slitting: finished sheet width is cut within a 950 mm range on one web.
• Single-row folding speed of 250 to 400 sheets per minute; total output is that speed multiplied by the number of slitting rows.
• V-fold cross folding with continuous (pop-up) extraction.
• Serrated or straight cut-off from the same machine.
• Runs 30 to 60 gsm wax paper and one-sided silicone paper from a 76 mm core.
• 7-inch touch screen control.

• Output scales with slitting rows, so one machine covers volume that would otherwise need several single-lane lines.
• Sheet length and slitting width are customizable, so a new sheet size is handled by tooling and settings instead of a second machine.
• Pop-up interleaving saves time at the counter: staff pull one sheet at a time and do not unfold or separate a stack by hand.
• A dedicated tension motor holds web tension through the fold and cut-off, which keeps the fold and the cut edge steady at running speed.
• One machine covers both wax paper and one-sided silicone paper.
• LIKEE has supplied aluminum foil and paper converting machinery since 2010 and provides overseas installation service.
